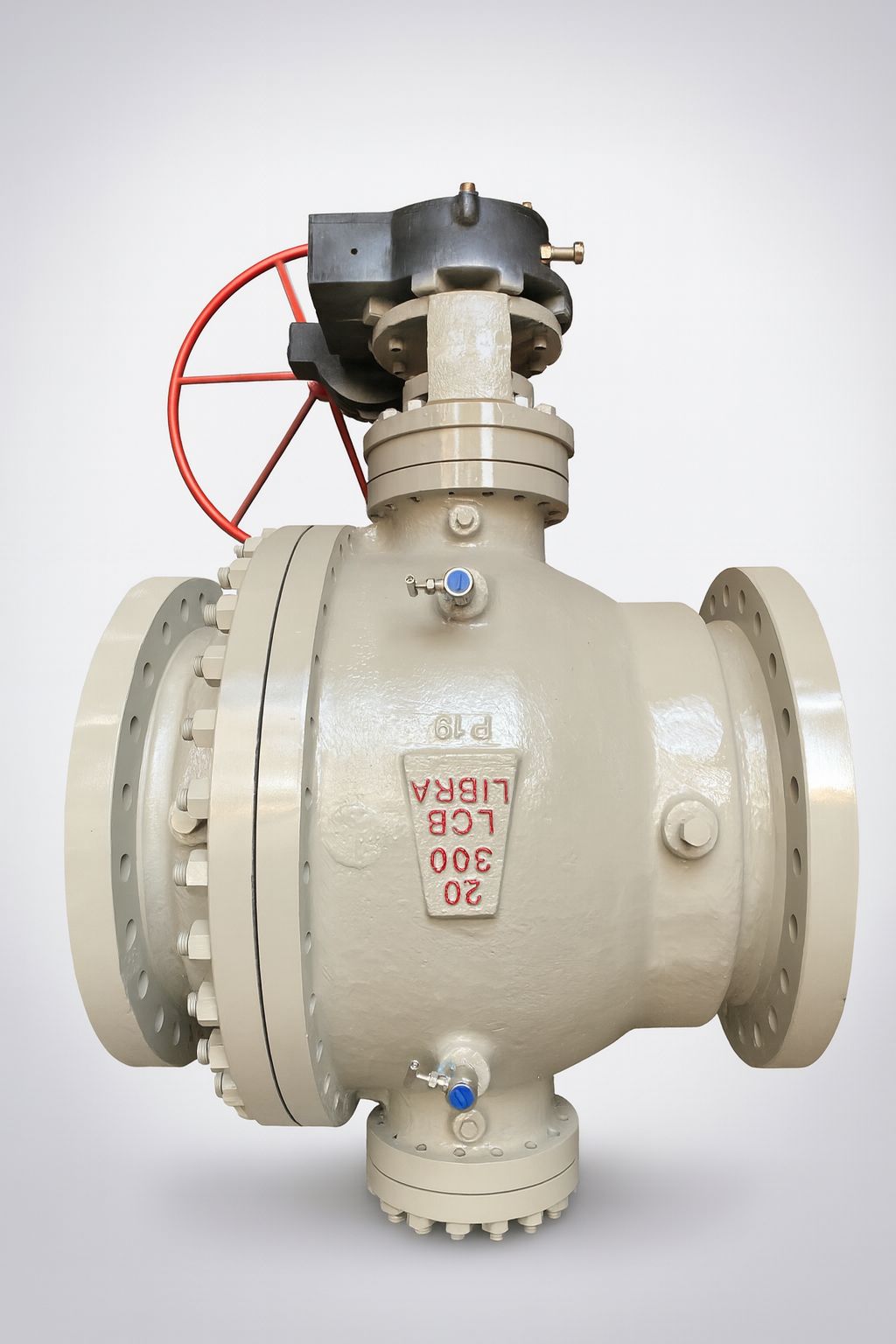

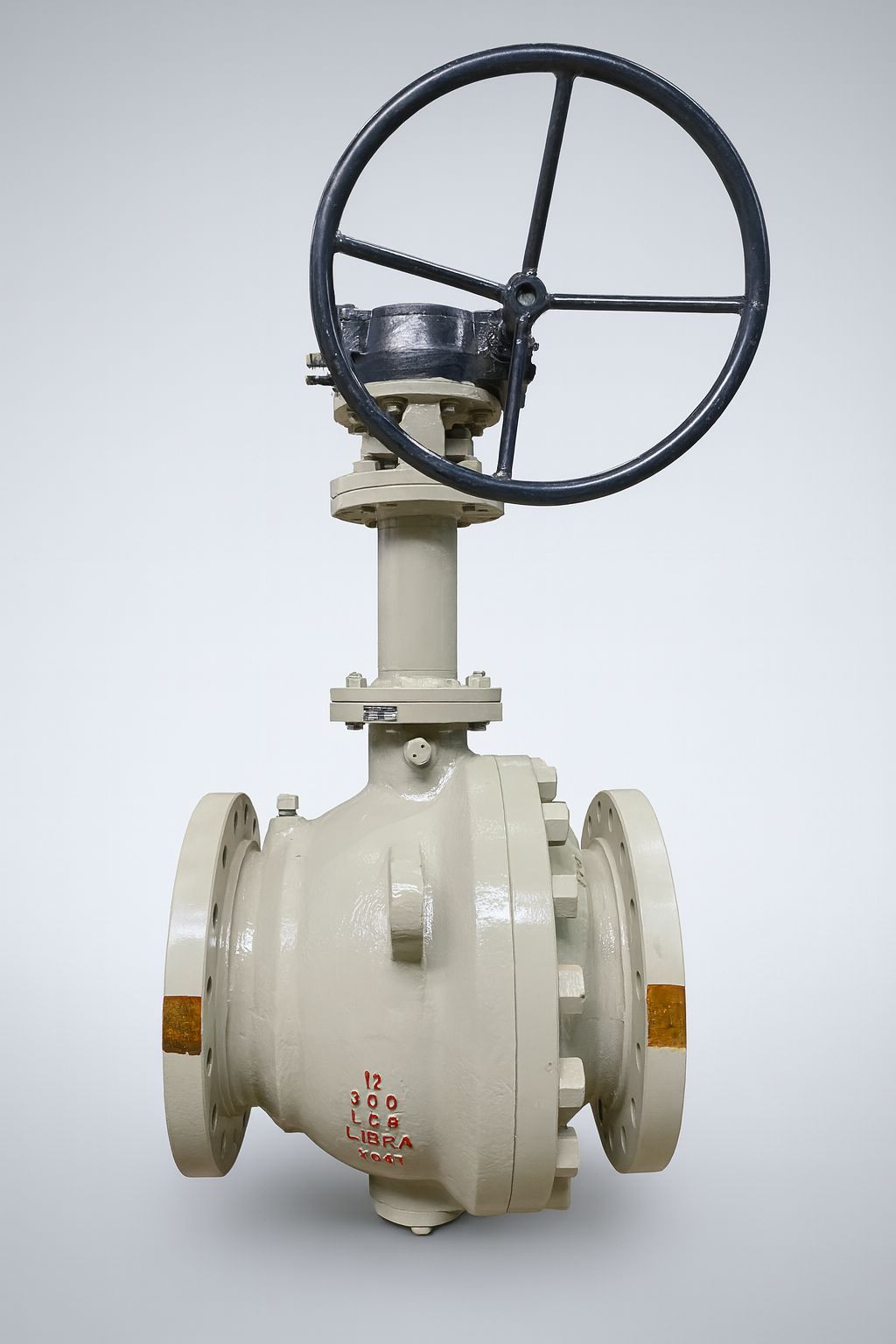

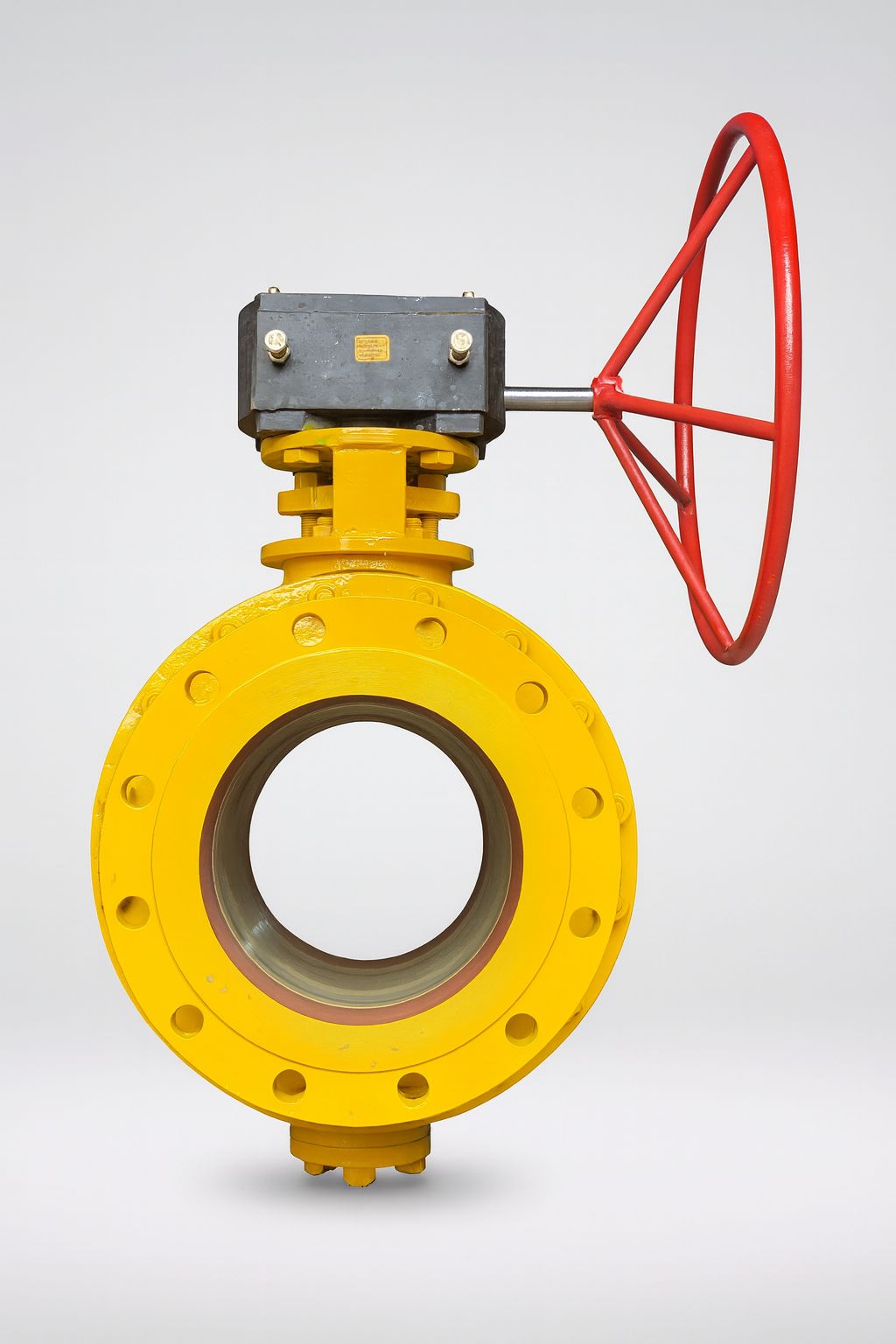

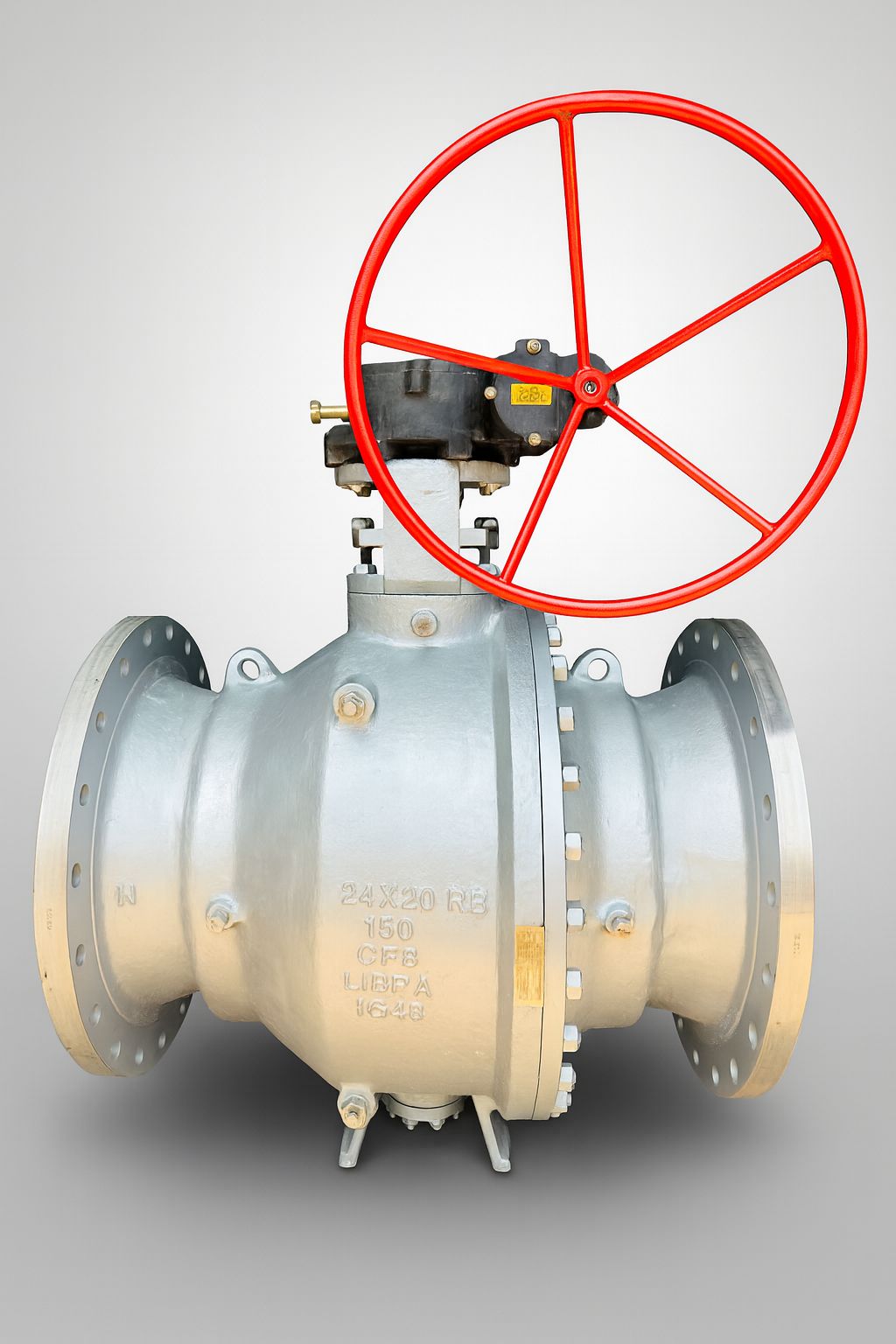

Ball Valve
Explore the Essentials
- API 600 Gate Valves
- API 603 Gate Valves

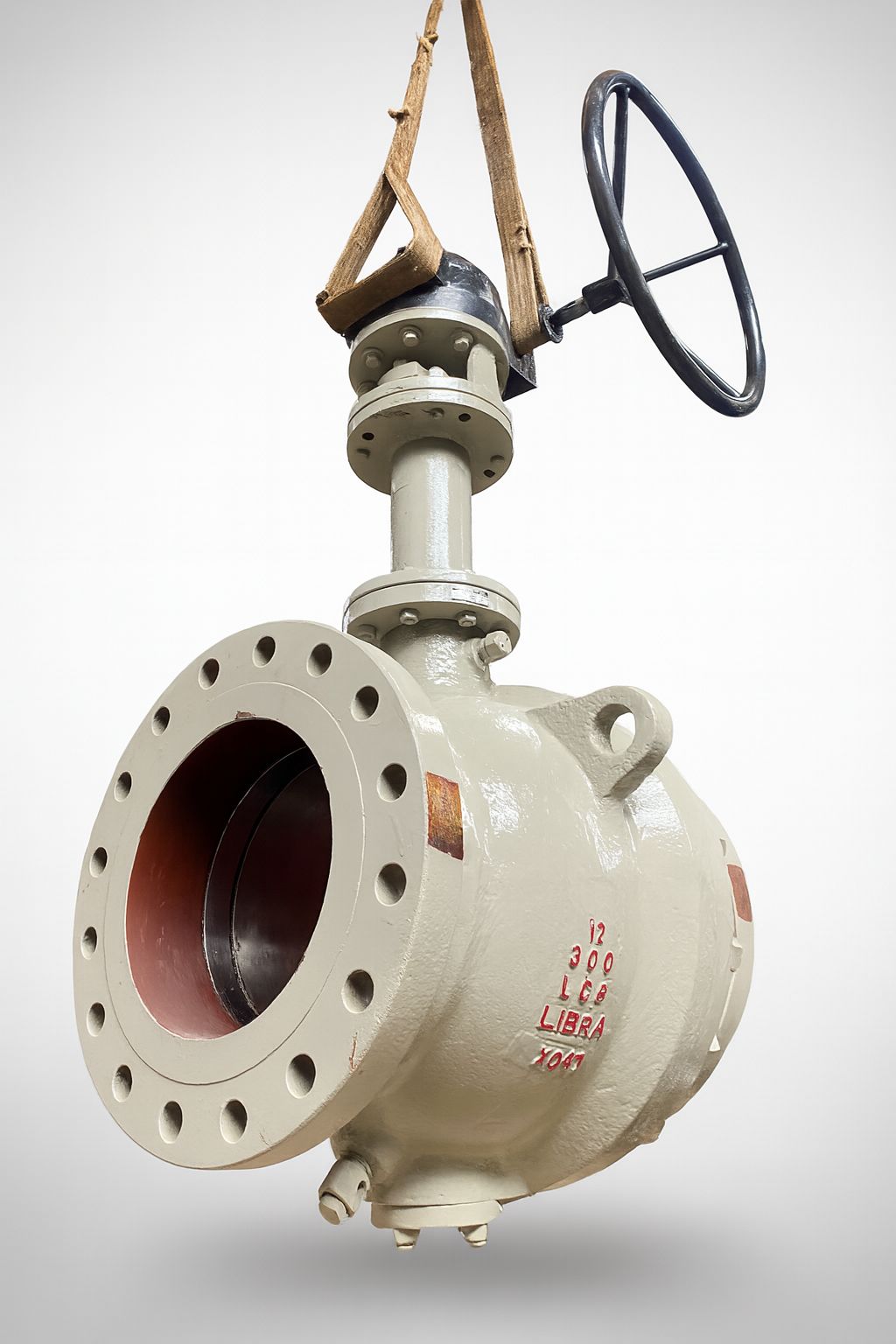

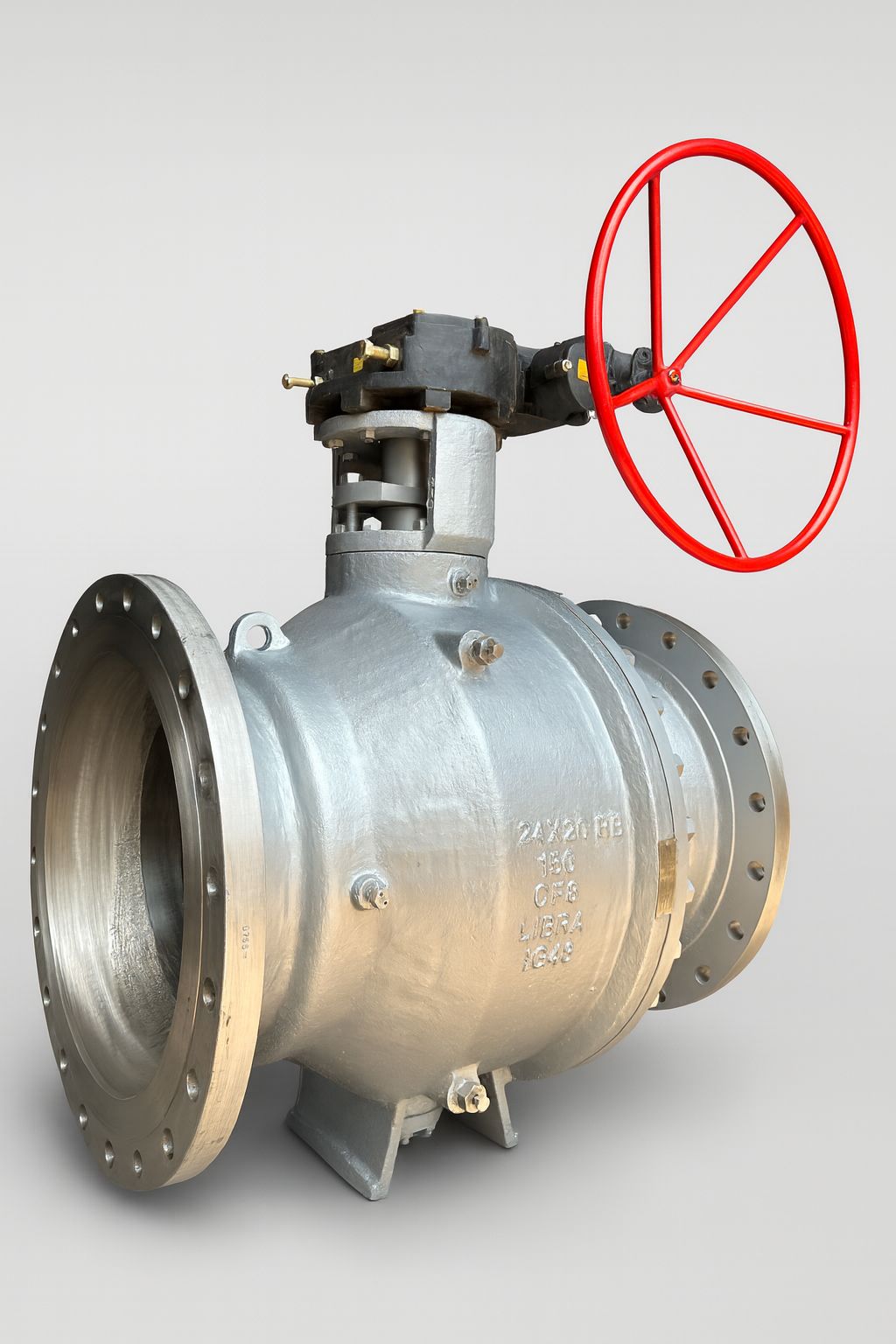

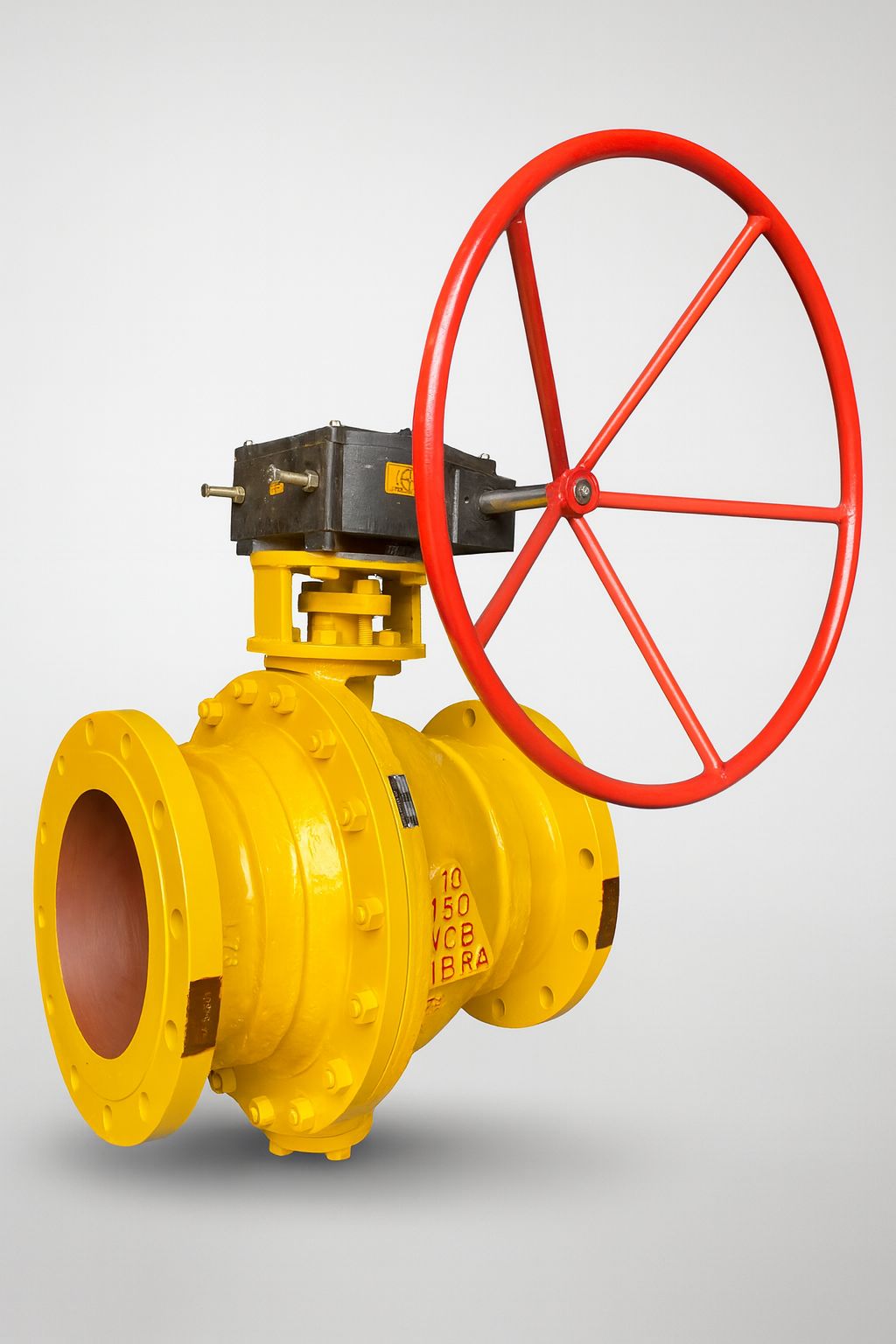

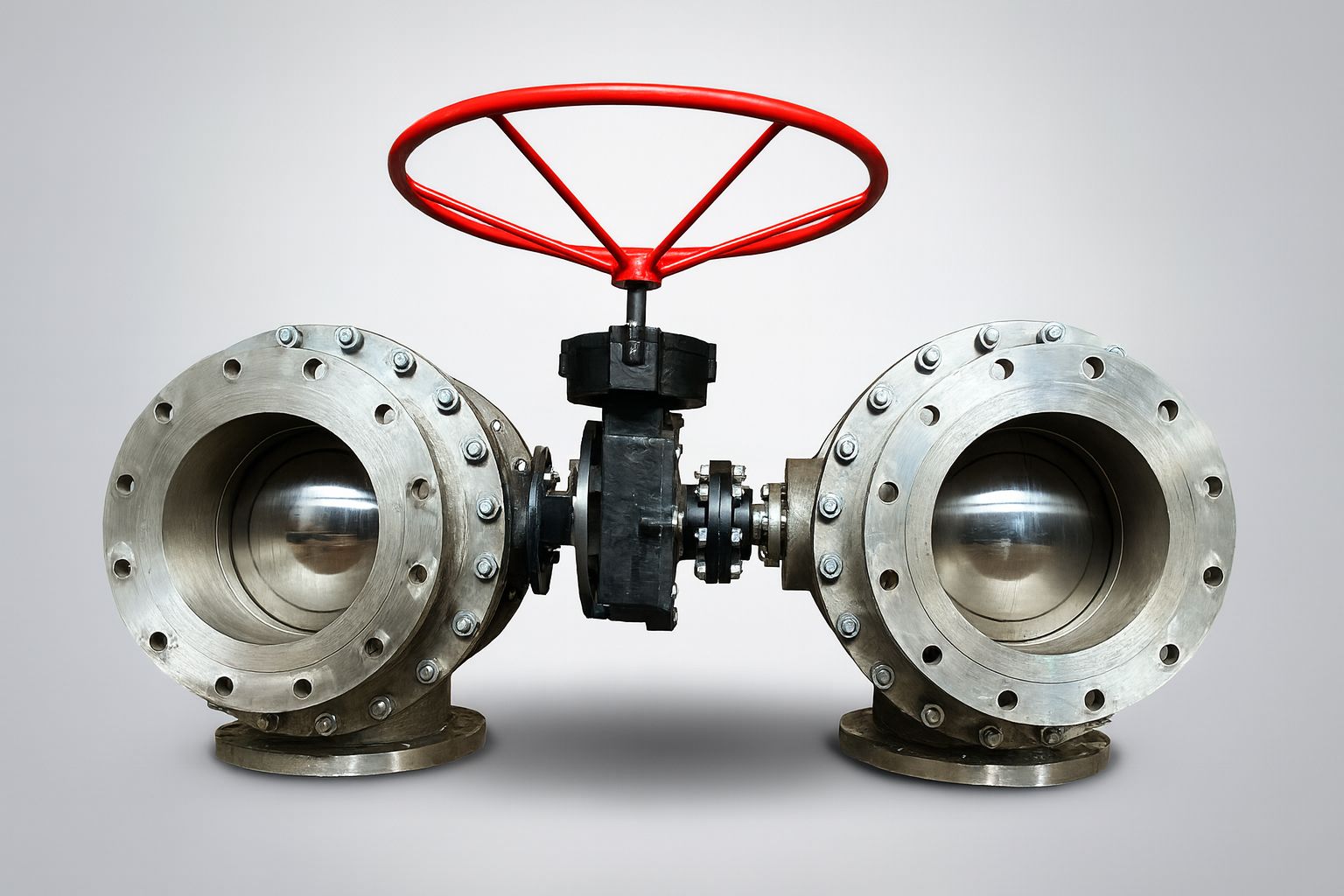

Ball Valve: Control at Your Fingertips
Size Range

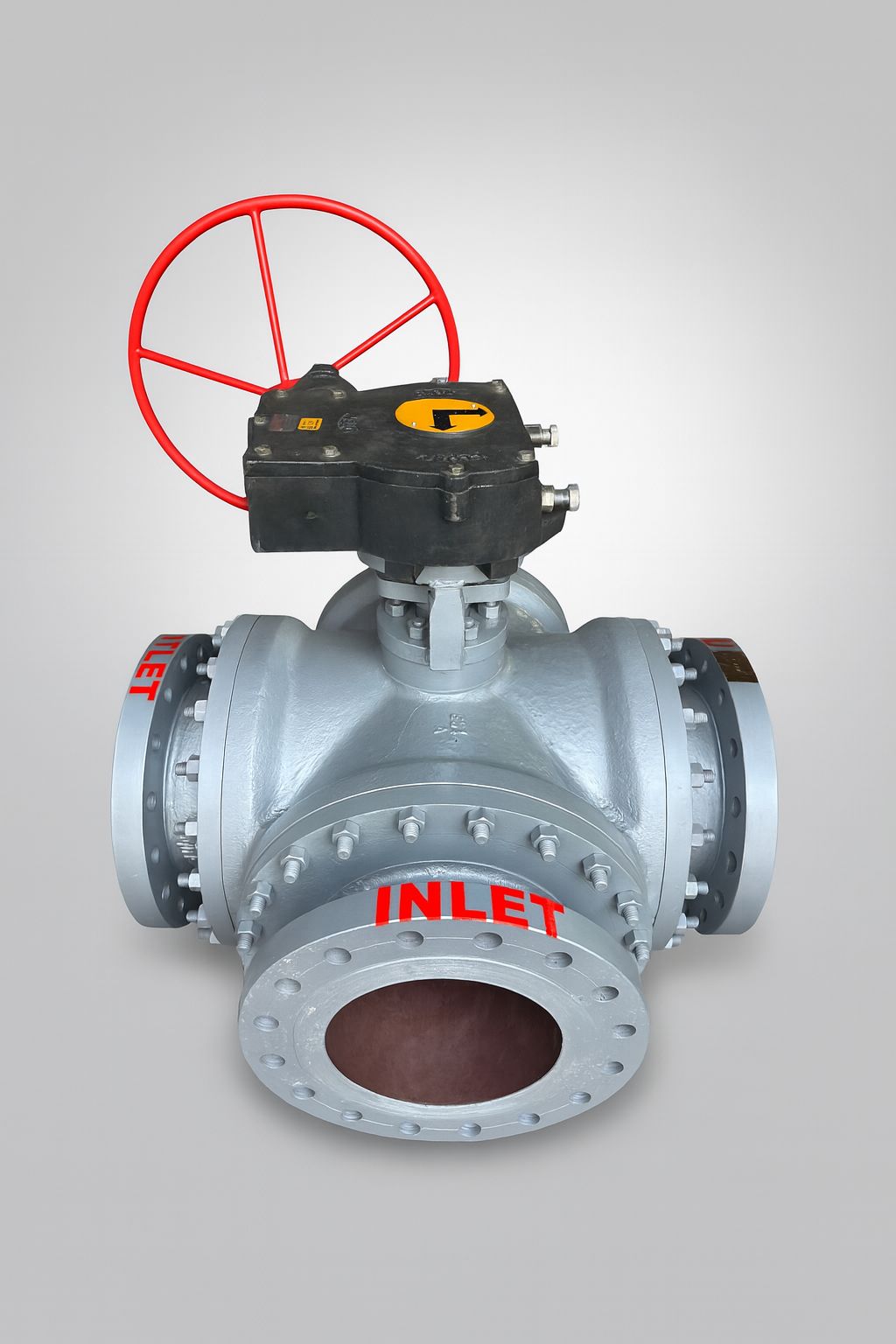

- Floating Type, 3-Way & Rising Stem:
½” to 12” (DN 15 mm to DN 300 mm) - Trunnion Mounted Type:
2” to 48” (DN 50 mm to DN 1200 mm)
Pressure Ratings
- Floating Type, 3-Way & Rising Stem:
ASME Class 150, 300, 600, 900, 1500 - Trunnion Mounted Type:
ASME Class 150, 300, 600, 900, 1500, 2500
Design Standards
- API 6D
- API 608,
- ASME B16.34
- ISO 17292
- ISO 15848
End Connection Types
- Flanged (RF/RTJ): ASME B16.5
- Butt-Weld: ASME B16.25
- Screwed / Socket Weld: on request
Operation Types
- Manual Lever /
- Handwheel
- Gear Operated

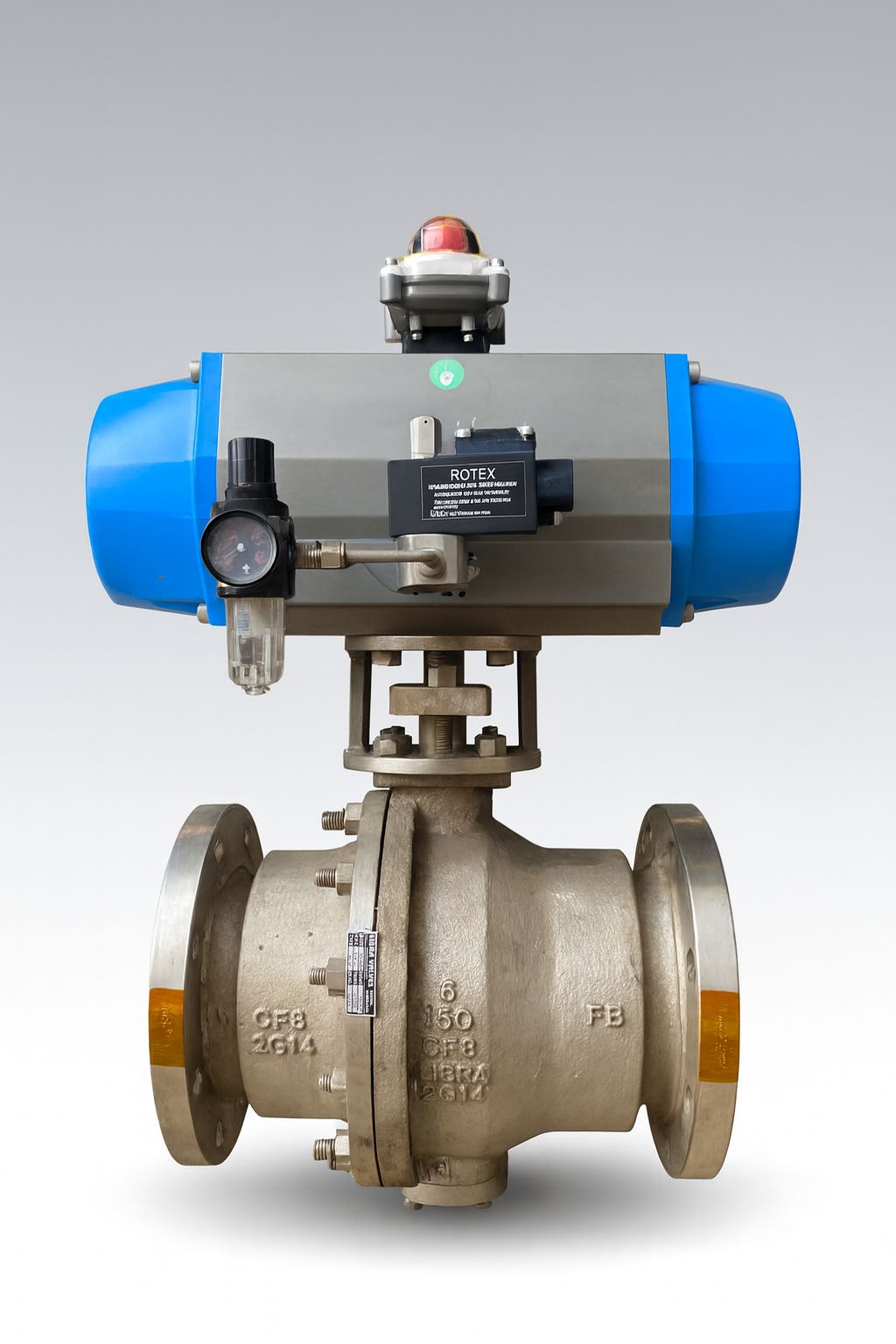

- Electric Actuator

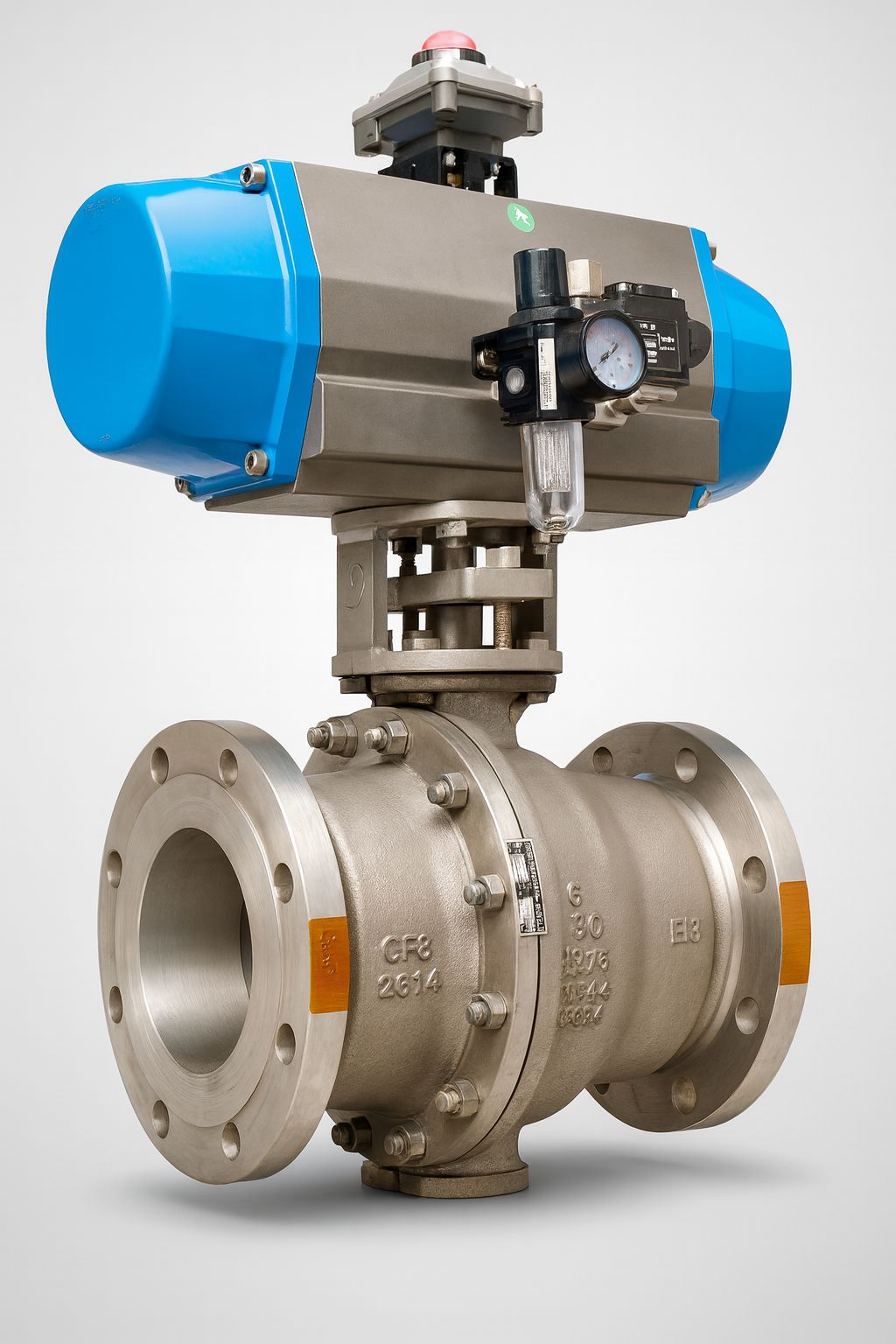

- Pneumatic Actuator
- Hydraulic Actuator
- Motorized / SCADA
- Compatible
Key Features
- Floating and Trunnion Designs
- ISO 5211 Mounting Pad
- Fire Safe & Anti-Static Design

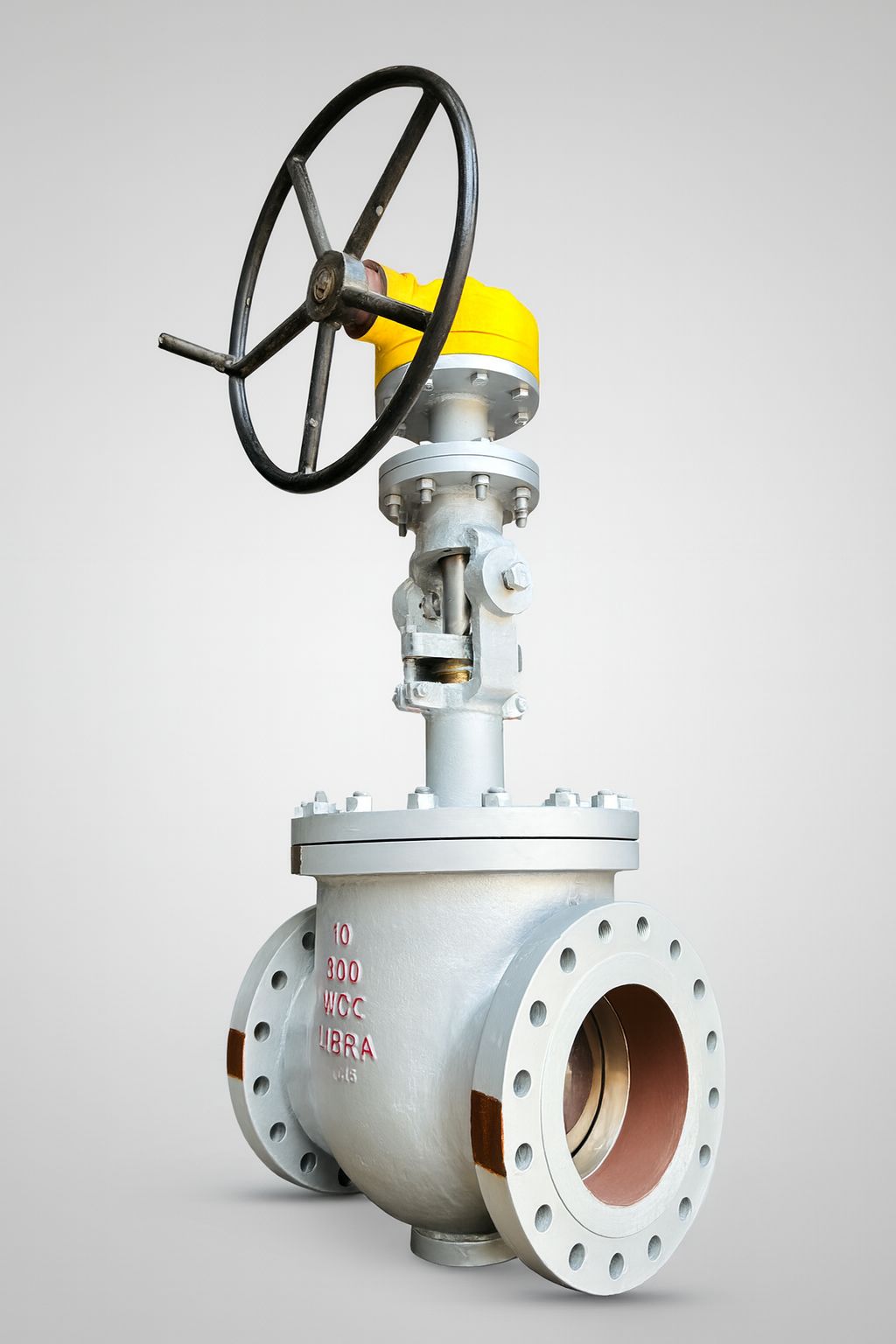

- Rising Stem with Non-Friction Operation

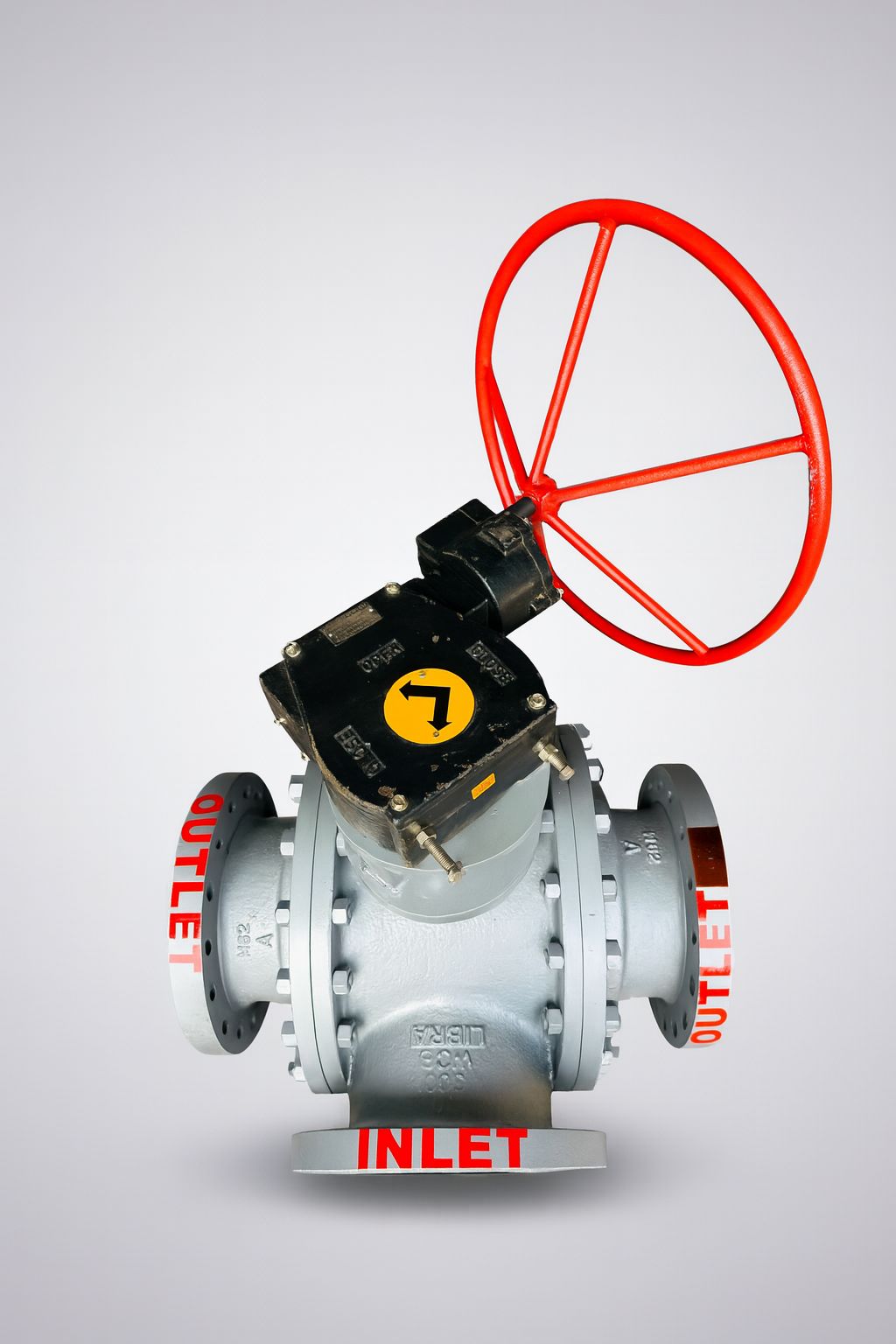

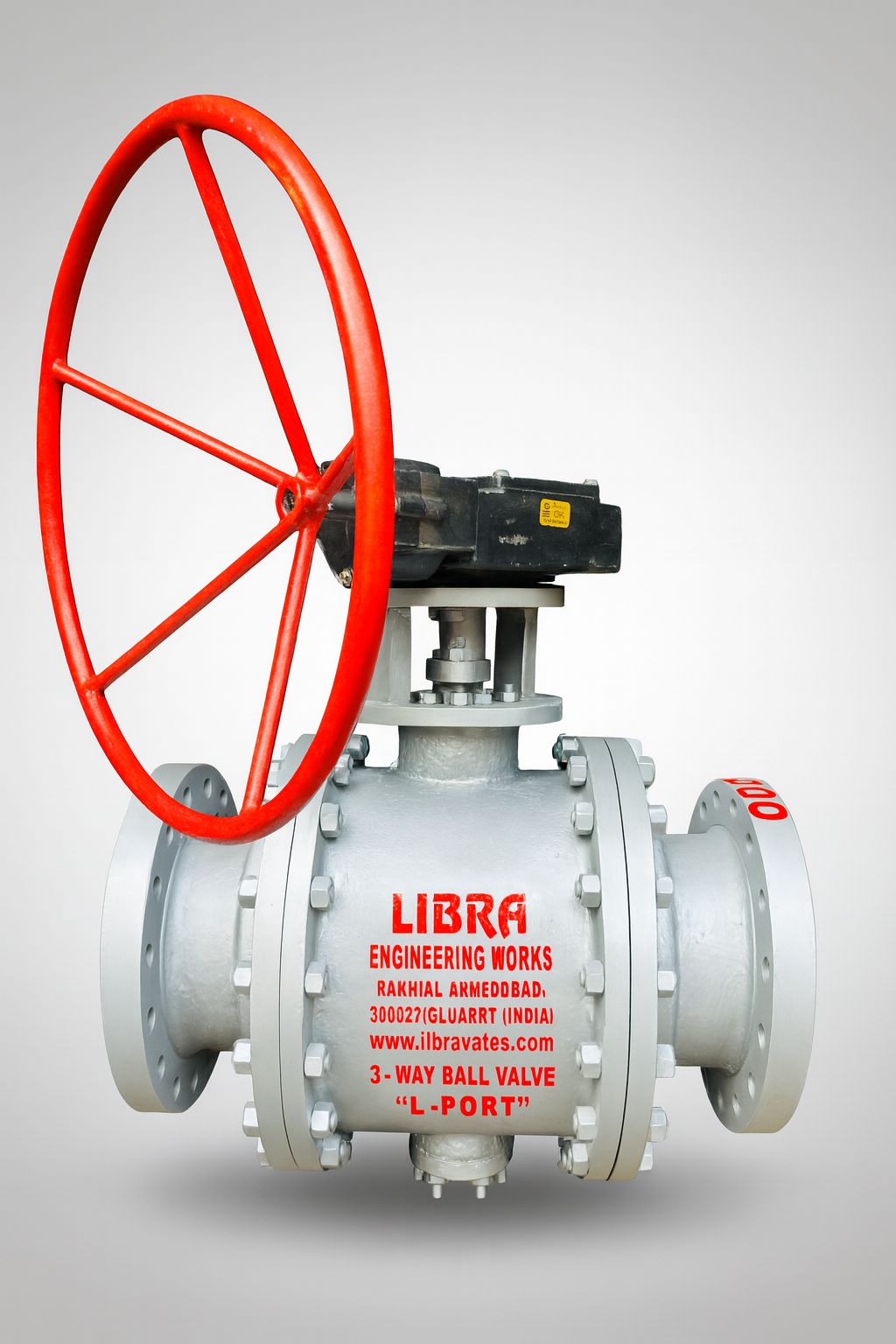

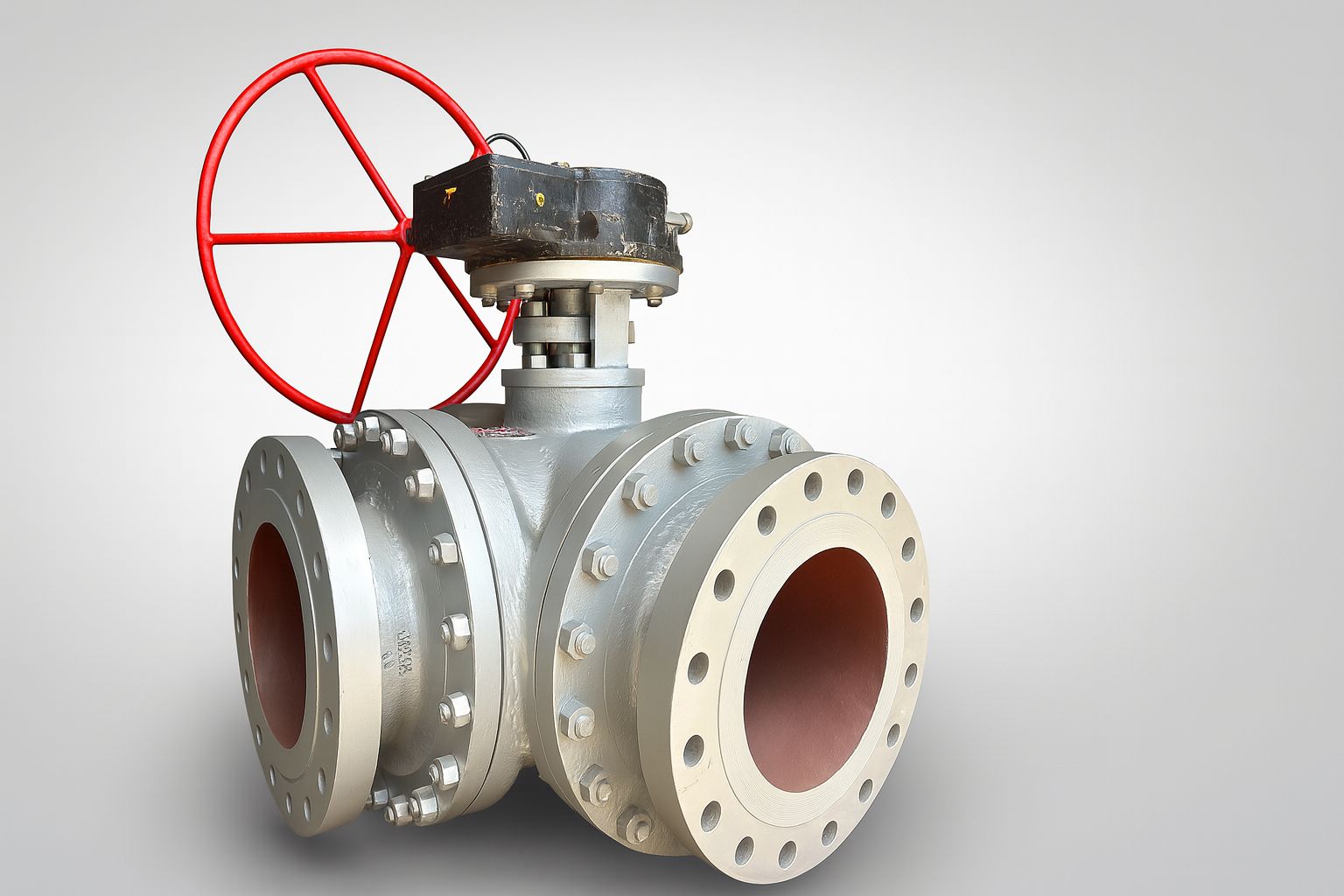

- Multi-port Options (L / T / LL Port)
- Double Block & Bleed (Trunnion Type)
- Emergency Sealant Injection (Trunnion Type)
Service Parameters
- Pressure: Up to 4500 psi
- Temperature: -46°C to +260°C
- Applications:
- Oil & Gas (Onshore & Offshore)
- Refinery & Petrochemicals
- Power Plants & Clean Energy
- Water, Steam & Chemical Processing
- Cryogenic & Fugitive Emission Services
Advantages
- Fire Safe & Emission Compliant
- Wide Configuration: L/T/LL/Rising Stem
- High Integrity Shutoff & Sealing
- Compact Design with ISO Mounting
- Maintenance Friendly
- Custom-Engineered Solutions
| Material Type | Grades | Application Suitability |
|---|---|---|
| Carbon Style | ASTM A216 Gr. WCB / WCC / LCB | General oil & gas, power, water services |

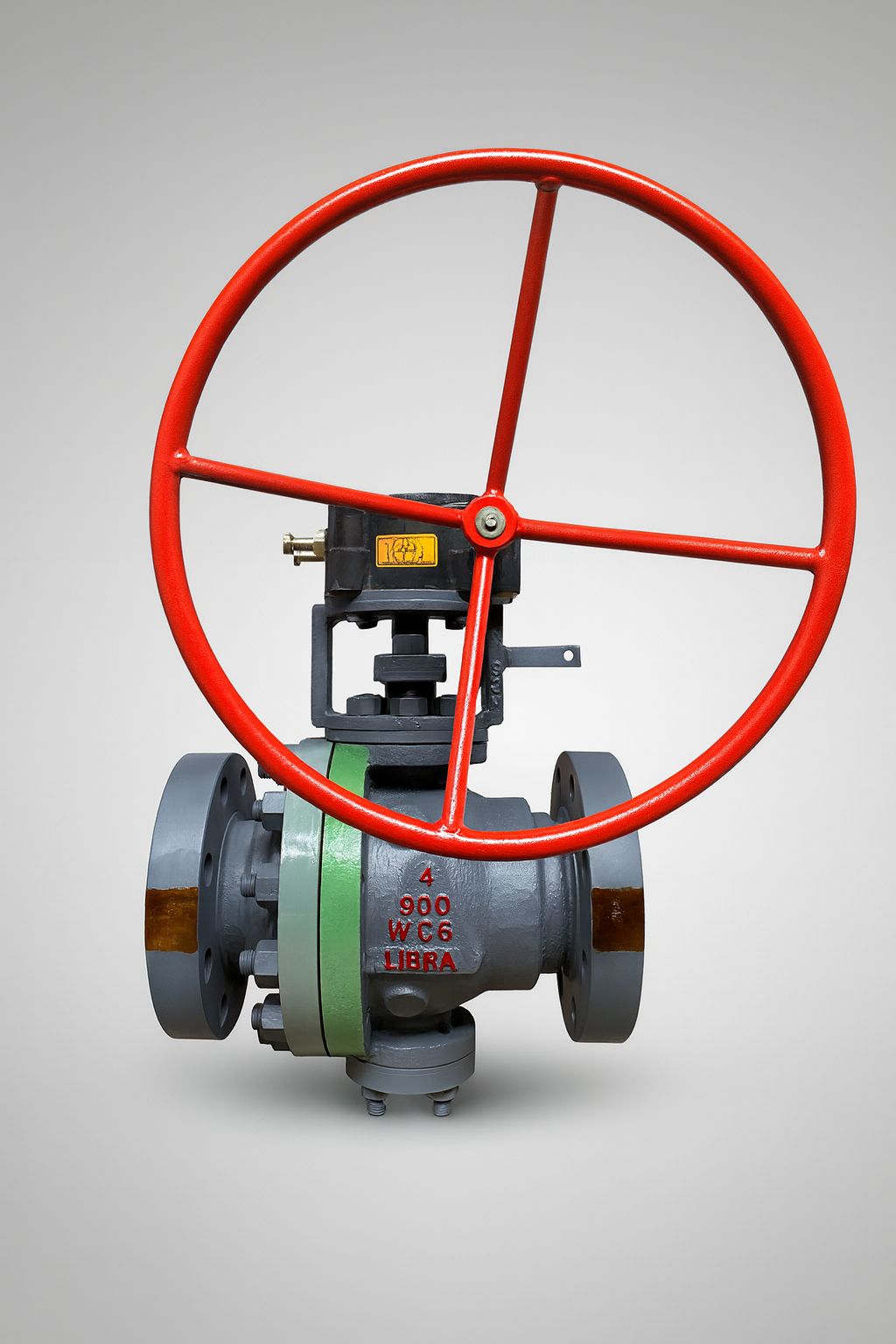

| Alloy Steel | ASTM A217 Gr. WC6 / WC9 / C5 / C12 | High-temperature steam, thermal & nuclear plants |
| Stainless Steel | ASTM A351 Gr. CF8 / CF8M / CF3 / CF3M | Corrosive media, chemical plants, refineries |
| Duplex Steel | ASTM A995 Gr. CD3MN / CE3MN | Seawater, offshore, desalination, aggressive chemicals |
| Bronze | ASTM B62 / B148 Gr. C95800 | Marine, brine, low-pressure water systems |
| Other Alloys | Monel, Inconel, Hastelloy (on request) | Special corrosive and high-nickel environments |
